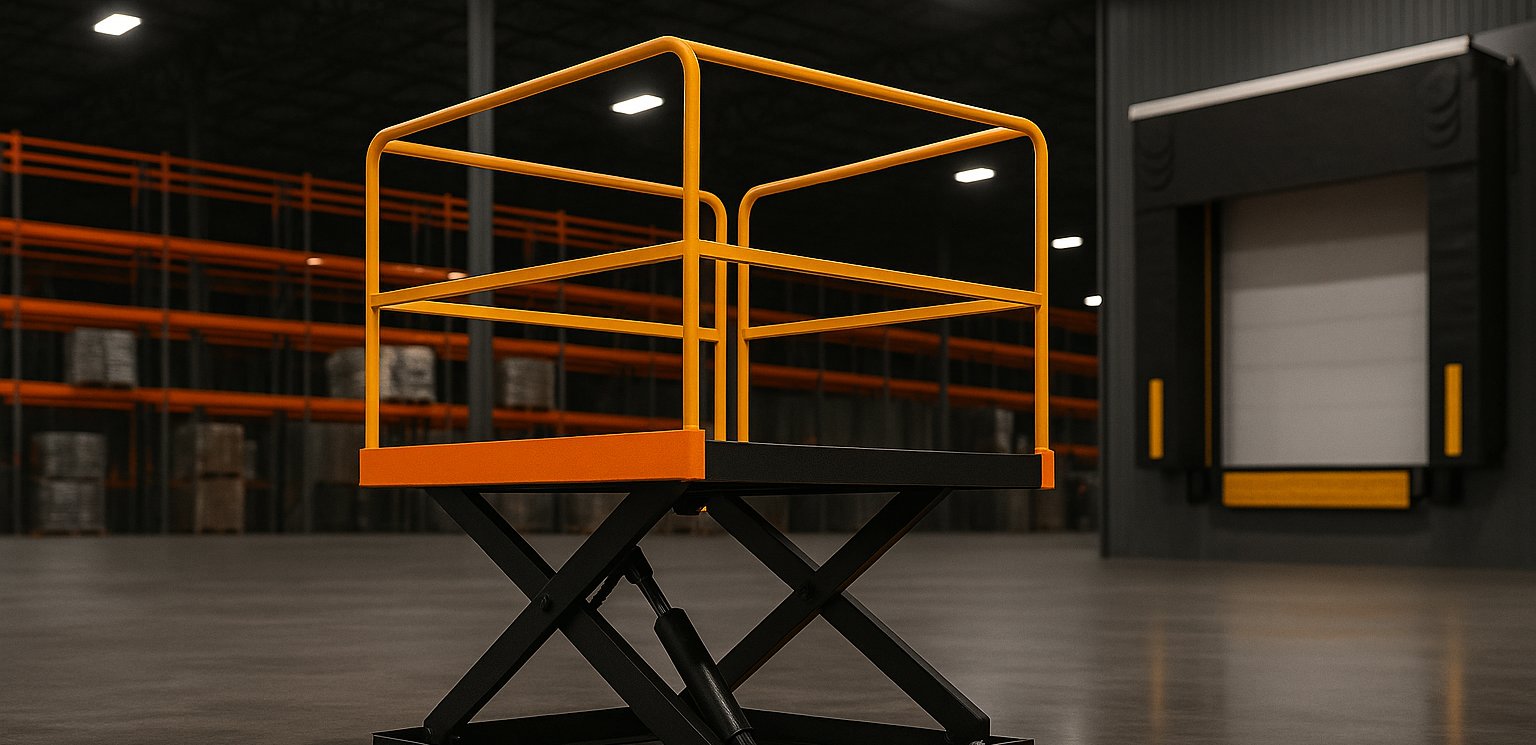

Truck Scissor Dock Lifts are designed to provide a safe and efficient way to load and unload goods from semi-trailers, especially in locations where there are no permanent loading docks. Engineered and designed for maximum safety and efficiency. The diamond plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature safetyvelocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a 20 foot long coil cord. Pre-wired control box includes magnetic starter and overload relay. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. Standard external 6.5 HP 460V, 3-phase, 60 Hz motor can be located up to 8 feet away from lift (weighs 300 pounds)

Safety Features

The electric toe-guard is a patented feature essential to the safety of personnel. The guard is made from L-shaped aluminum extrusion and hangs below the entire perimeter of the deck. If the Scissor Dock is being lowered while an object such as a personâ€™s hand or foot is in its path, the guard will be triggered and electrically stop the table from lowering. Once the object is removed, the table will once again be operable; there is no need to reset the unit. Without toe-guard provisions, scissor tables do not meet OSHA or ANSI standards and are extremely dangerous to operate.

Unique design services semi-trailers when loading dock is unavailable
Tread plate surface provides a safe non-slip grip
Safety velocity fuses protect the hydraulic cylinders
Upper travel limit switch cuts power to unit when max raised height is reached

Premium Truck Scissor Dock Lifts

Show12243648

Vestil Premium Truck Scissor Dock Lift

$12,730.85
